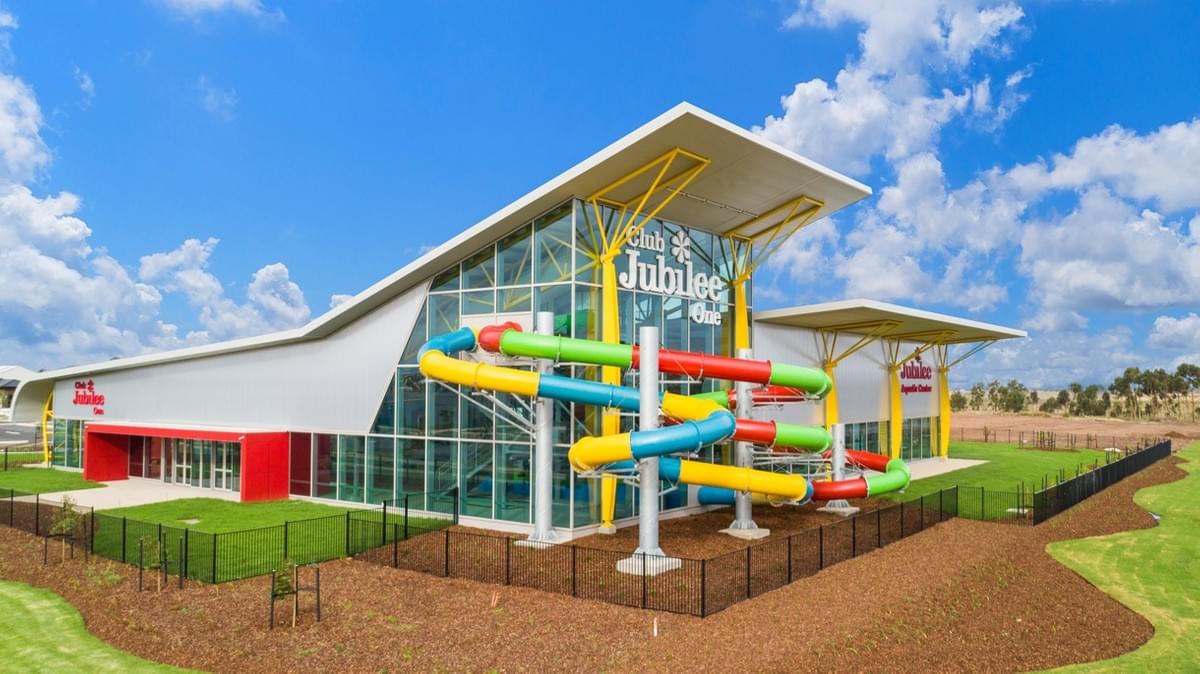

• Jubilee Aquatic Centre

    broken image

    This was a very rewarding project for AMR. Co-ordinating polycarbonate materials from Italy, Kingzip materials from Dubai, and KS materials/labour from Sydney to install a airtight building envelope compatible with the chlorinated pool environment.



  • Client:

    McCorkell Constructions

    Project Location:

    Corner of Welcome Parade & Ballan Rd, Wyndham Vale VIC 3024

    Roofing Details:

    Type: KS 1000RW (60mm core with Aquasafe55 internal liner)

    Size: 2,400m2 Colour: Shale Grey



    Type: Kingzip aluminium (333 profile) Curved on-site

    Size: 200m2 Colour: RAL 7038



    Type: Gallina Polycarbonate skylights (ArcoPlus 9207)

    Size:126m2 Colour: Ice clear outside, opal inside



    Type: Lysaughts KlipLok .48

    Size: 1000m2 Colour: Shale Grey

    Wall Cladding details:

    Type:Gallina Polycarb (Arcowall 60mm)

    Size: 330m2

    Colour: (Ice Clear outside, Opal inside)
